OUR SERVICES

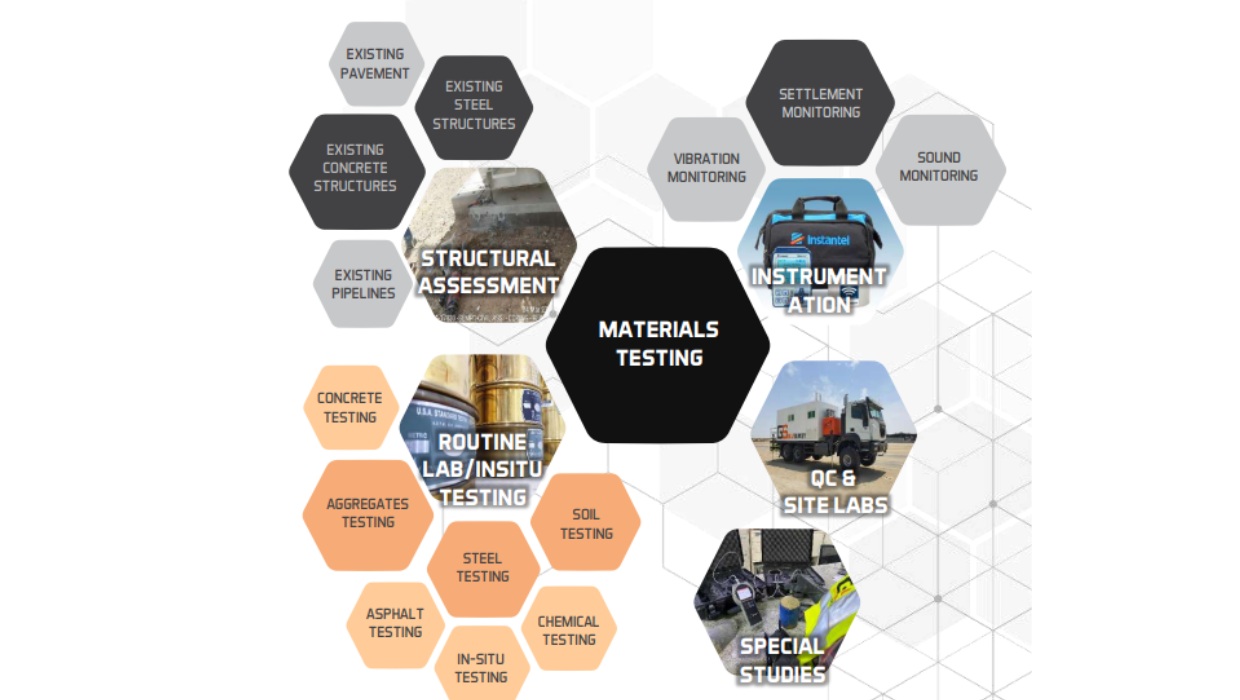

Materials Testing

CONCRETE TESTING

ROUTINE LAB/ IN-SITU TESTING

  • Compressive Strength, dimensions and density of Cubes, cylinders, cores, masonry blocks, paving units ….
  • Water Permeability.
  • Water Absorption and Porosity.
  • Determination of Initial Surface Absorption
  • Electrical Indication of Concrete’s Ability to Resist Chloride Ion Penetration.
  • Tensile Splitting Strength
  • Depth of Carbonation.
  • Transverse Strength and modulus of rupture of Tiles, beams, kerb-stones.
  • Chemical Resistance of Floor and Wall Tiles
  • Modulus of Rupture of Ceramic Floor and Wall Tiles
  • Slump, bleeding, density, air content, setting time of fresh concrete.
  • Cement Content of Concrete.
  • Pull Out Test. • Pull Off Test.
  • Load Tests on Structures or Part of Structures.

SOIL AND ROCK TESTING

  • Maximum dry density moisture relationship (Modified / Standard Proctor).
  • California Bearing Ratio (CBR).
  • Liquid Limit, Plastic Limit and Plasticity Index
  • Field Density Test
  • Particle size analysis by Sieving and sedimentation (Hydrometer).
  • Determination of Density (Bulk Density)
  • Water (Moisture) Content of Soil and Rock by Mass
  • Specific Gravity of Soil
  • Unconfined Compressive Strength and Elastic Modulus determination of Cohesive Soil.
  • Point Load Strength Index of Rock
  • Shrinkage Factors of Soil by the Mercury Method
  • Sand Equivalent Value of Soils and Fine Aggregates
  • Percolation Test and field soil permeability test.
  • Water permeability testing (Constant and falling head).
  • Consolidation Testing.
  • Direct shear testing.
  • In -situ CBR
  • Plate Load Test.
  • Zone Load Test.

AGGREGATE TESTING

  • Sieve Analysis
  • Shell Content
  • Drying Shrinkage in Aggregate
  • Clay Lumps and Friable Particles
  • Potential Alkali-Silica Reactivity
  • Flakiness & Elongation Index
  • Determination of Particle Densities and Water Absorption for Coarse & Fine Aggregate
  • Light Weight Pieces
  • Soundness of Aggregate by Use of Sodium Sulphate or Magnesium Sulphate
  • Compaction Fraction Test
  • Sand Equivalent
  • Fully & Partially Crushed Faces
  • Los Angeles Abrasion (LAA)
  • Aggregate Crushing Value (ACV)
  • Aggregate Impact Value (AIV)
  • Ten Percent Fines Value (Dry and Soaked)
  • Moisture Content
  • Bulk Density

STEEL TESTING

  • Tensile Strength
  • Bend Test
  • Re-bend test
  • Chemical analysis per element
  • Coating continuity (Holiday Detection)
  • Coating Thickness
  • Coupler test (up to 32mm dia.)

WATER TESTING

  • Sulphate Content
  • Chloride Content
  • pH Value
  • Total Dissolved Solids
  • Total Suspended Solids
  • Carbonates & Bicarbonates Alkalinity.

BITUMEN AND BITUMINOUS MIXTURES TESTING

  • Penetration.
  • Softening Point.
  • Flash Point.
  • Ductility.
  • Bulk Specific Gravity, Density & Water Absorption
  • Sieve Analysis of extracted aggregate.
  • Bitumen Content by extraction.
  • Theoretical Maximum Specific Gravity & Density.
  • Marshall Stability, flow, and loss of stability of asphalt mixtures.
  • Percentage of Voids (VFA, VFB, VMA)
  • Thickness or Height of Compacted Bituminous Paving Mixtures (Cored Specimens)

CEMENT TESTING

  • Chemical Analysis
  • Compressive Strength, including preparation of specimens
  • Heat of Hydration
  • Soundness
  • Consistency and Setting Time
  • Fineness of Cement (Specific Surface)

PILE TESTING

  • Low Strain Integrity Testing of Piles
  • Cross Hole Sonic Logging of Piles
  • Monitoring and Reporting of Piles
  • Dynamic Load Testing of Pile
  • Pile Instrumentation

CHEMICAL TESTING

  • Sulphates Content of Concrete, aggregates, water, soil and rock.
  • Chlorides Content of Concrete, aggregates, water, soil and rock.
  • pH Value
  • Organic Matter Content.
  • Organic Impurities.
  • Carbonates and bi-carbonates content.

IN-SITU SPECIAL TESTING

  • Pull-out of cladding system.
  • Pull-out of Steel rebars.
  • Loading test for existing structures.
  • Zone loading test.
  • Plate load test.
  • In-situ CBR
  • In-situ Permeability.
  • Determination of dry-film-thickness (DFT).
  • Pull-of testing

QUALITY CONTROL PROGRAMME OF PROJECTS

  • Developing quality control programs for medium and large-scale projects
  • Establishing on-site third-party laboratory including test equipment and manpower.
  • Monthly statistical reports.

STRUCTURAL ASSESSMENT

CONCRETE STRUCTURES

  • Concrete cores obtaining and testing (Destructive).
  • Determining the depth of carbonation (Destructive).
  • Window opening and steel exposing (Destructive).
  • Exposing existing footings (Destructive).
  • Concrete Scanning to Detection of elements inside concrete (I.e., steel, pipes, cables, voids, live electrical cables …) using Hilti PS 1000 XScanner.
  • Rebound Hammer (NDT). • Ultra-Sonic Pulse Velocity (NDT).
  • Surface Hardness by Rebound Hammer (NDT)
  • Half Cell Potentials of Uncoated Reinforcing Steel in Concrete (NDT).
  • Measurement of Velocity of Ultrasonic Pulses in Concrete (NDT).
  • Concrete Cover measurements (NDT)
  • Concrete mapping and steel rebar size and length determination.
  • Crack detection, and measurements.
  • Reporting inclusive data analysis, conclusions and repair recommendations using latest software’s.

 STEEL STRUCTURES (ON-LAND AND SUBSEA)

  • Corrosion mapping and remaining steel thickness measurements.
  • Steel coating thickness measurements.
  • Magnetic Particle Inspection (MPI) for welded sections.
  • ACFM Services.
  • Cathodic protection check.


EXISTING PAVEMENT ASSESSMENT

  • Determination of Pavement Condition Index (PCI).
  • Determination of International Roughness Index (IRI).
  • Asphalt coring and asphalt tiles obtaining for further lab testing and quality check.
  • Trial pit excavation and sampling the underneath pavement layers, for further lab testing and quality check.
  • Data collection, interpretation, and analysis.


INSTRUMENTATION

  • Vibration and sound monitoring.
  • Settlement Monitoring.
  • Crack monitoring.
  • Reporting inclusive data analysis, conclusions, and recommendations.

SPECIAL STUDIES AND CONSULTANCIES

  • The technical expertise of Gulf Survey’s Team has been assembled to the benefit of our clients; therefore, we believe that each obstacle is a new opportunity and new knowledge to expand our market contribution.
  • Gulf Survey team can put its own experience, and know-how into the right approach, to create a technical solution for field related issues.
